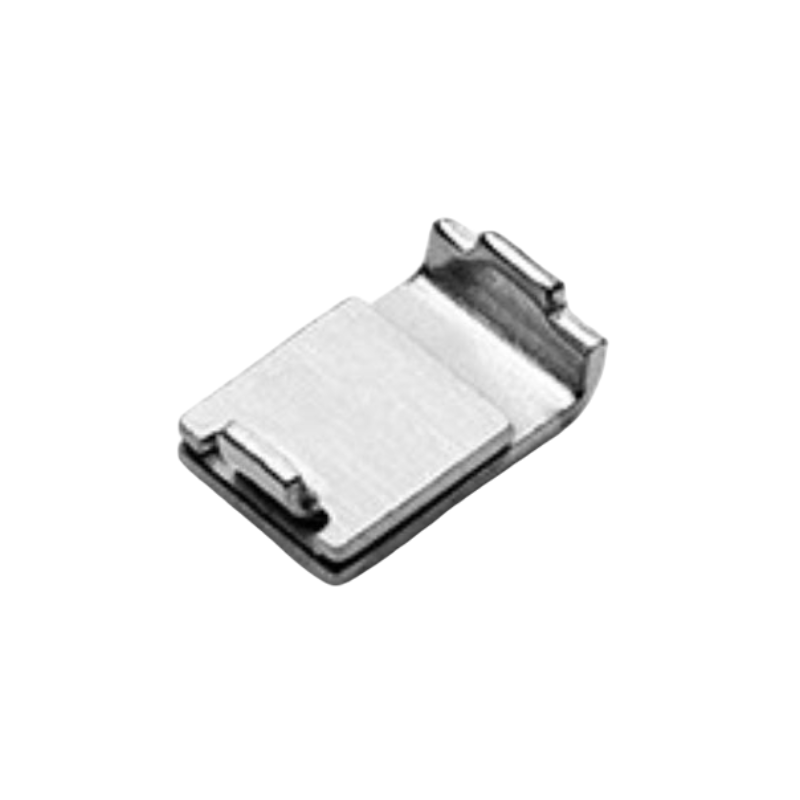

自恢复保险丝 PTCs 2920TS Series
系列：TS Series
工作温度：-40℃ to +85℃
工作电压：15dcV to 60dcV
保持电流：0.3A to 3.0A
特性：2920车规级封装，适配SMT高速组装，满足汽车与工业严苛应用
认证：TU、TUV、AEC Q200(Grase1)
Datasheet for 2920TS Series （Version A0）
| Electrical Performance | |||||||||
|
Part Number |
Vmax(Vdc) |
Imax (A) |
Current Rating |
Max. Time to Trip |
Resistance |
Tripped State Power Dissipation |
|||
|
@25°C (A) |
@25°C (A) |
@25°C (A) |
@25°C (Ohms) |
@25°C (Watts) |
|||||
|
Ihold |
Itrip |
Current | Time |
Rmin |
R1max |
TYP. |
|||
|
2920TS030-60 |
60 |
10 |
0.30 |
0.60 |
1.50 |
3.00 |
1.200 |
4.800 |
1.70 |
|
2920TS050-60 |
60 |
10 |
0.50 |
1.00 |
2.50 |
4.00 |
0.350 |
1.400 |
1.70 |
|
2920TS075-30 |
30 |
40 |
0.75 |
1.50 |
8.00 |
0.30 |
0.350 |
1.000 |
1.70 |
|
2920TS075-60 |
60 |
10 |
0.75 |
1.50 |
8.00 |
0.30 |
0.350 |
1.000 |
1.70 |
|
2920TS100-33 |
33 |
40 |
1.00 |
2.00 |
8.00 |
0.50 |
0.120 |
0.480 |
1.70 |
|
2920TS110-30 |
30 |
40 |
1.10 |
2.20 |
8.00 |
0.50 |
0.120 |
0.480 |
1.70 |
|
2920TS110-33 |
33 |
40 |
1.10 |
2.20 |
8.00 |
0.50 |
0.120 |
0.480 |
1.70 |
|
2920TS125-15 |
15 |
40 |
1.25 |
2.50 |
8.00 |
2.00 |
0.040 |
0.250 |
1.70 |
|
2920TS125-33 |
33 |
40 |
1.25 |
2.50 |
8.00 |
2.00 |
0.040 |
0.250 |
1.70 |
|
2920TS150-33 |
33 |
40 |
1.50 |
3.00 |
8.00 |
5.00 |
0.080 |
0.230 |
1.50 |
|
2920TS200-24 |
24 |
40 |
2.00 |
4.00 |
8.00 |
5.00 |
0.050 |
0.125 |
1.50 |
|
2920TS250-15 |
15 |
40 |
2.50 |
5.00 |
8.00 |
10.00 |
0.035 |
0.085 |
1.50 |
|
2920TS300-15 |
15 |
40 |
3.00 |
6.00 |
8.00 |
35.00 |
0.015 |
0.050 |
1.50 |

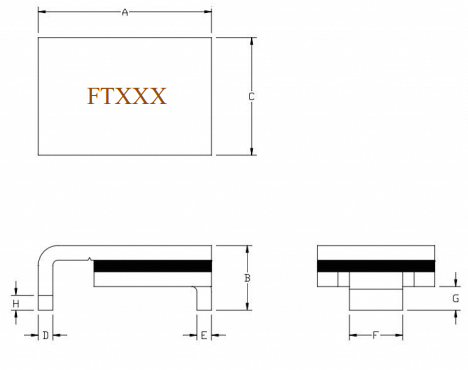

| Dimensions | |||
| PART MARKING (Marking code varies with the Amp and Voltage) |
|||
|
|
Dimensions MM (INCH) |
||
| Dimension | Min | Max | |
| A | 6.73 (0.265) |
7.98 (0.314) |
|
| C | 4.80 (0.189) |
5.44 (0.214) |
|
| D | 0.56 (0.022) |
0.71 (0.028) |
|
| E | 0.56 (0.022) |
0.71 (0.028) |
|
| F | 2.16 (0.085) |
2.41 (0.095) |
|
| G | 0.66 (0.026) |
1.37 (0.054) |
|
| H | 0.43 (0.017) |
||
| Dimension C (thickness) and Part Marking | |||
| Part number | Part Marking |
Dimension C Unit: mm(inch)
|
|
| min | max | ||
| 2920TS030-60 | FT030 | - | 3.18(0.125) |
| 2920TS050-60 | FT050 | - | 3.18(0.125) |
| 2920TS075-30 | FT075 | - | 3.18(0.125) |
| 2920TS075-60 | FT076 | - | 3.18(0.125) |
| 2920TS100-33 | FT100 | - | 3.10(0.122) |
| 2920TS110-30 | FT110 | - | 3.10(0.122) |
| 2920TS110-33 | FT113 | - | 3.10(0.122) |
| 2920TS125-15 | FT125 | - | 3.00(0.118) |
| 2920TS125-33 | FT125 | - | 3.00(0.118) |
| 2920TS150-33 | FT150 | - | 3.00(0.118) |
| 2920TS200-24 | FT200 | - | 3.00(0.118) |
| 2920TS250-15 | FT250 | - | 3.00(0.118) |
| 2920TS300-15 | FT315 | - | 3.00(0.118) |
| Pads Layout (Recommended) | ||||
|
|
Recommended Pad Layout Figures | |||
| A | B | c | ||
| NOM | NOM | NOM | ||
| mm: | 5.10 | 2.30 | 3.10 | |
| inch | (0.201) | (0.090) | (0.120) | |
