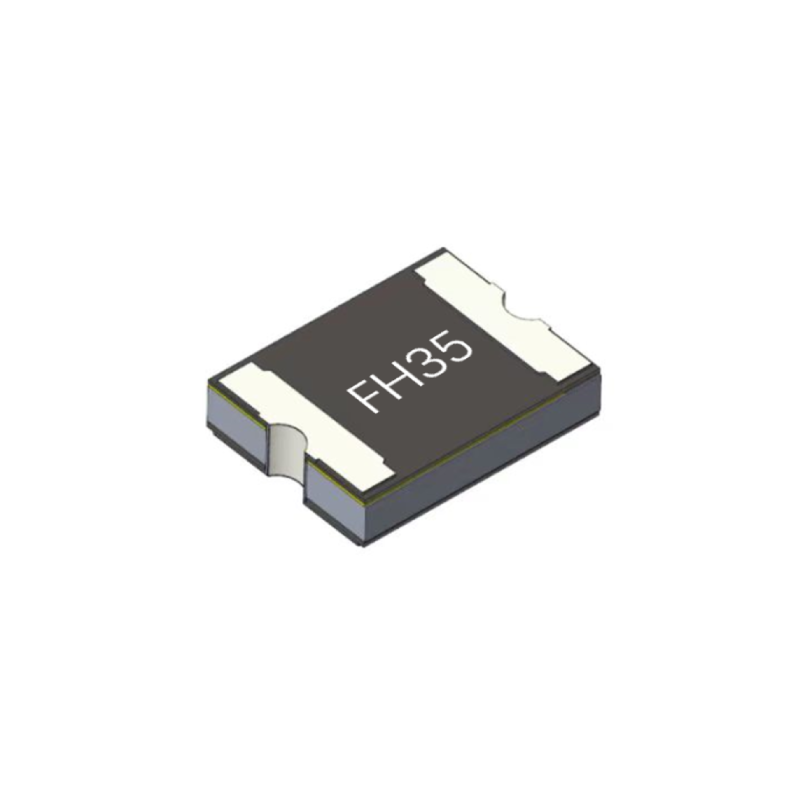

自恢复保险丝 PTCs 2920HPS Series
表面贴装系列产品
系列：HPS Series
工作温度：-40℃ to + 125℃
工作电压：24Vdc to 36Vdc
保持电流：1.2A to 3A
特性：2920车规级封装，适配SMT高速组装，满足汽车与工业严苛应用
认证：TU、TUV、AEC Q200(Grase1)
系列：HPS Series
工作温度：-40℃ to + 125℃
工作电压：24Vdc to 36Vdc
保持电流：1.2A to 3A
特性：2920车规级封装，适配SMT高速组装，满足汽车与工业严苛应用
认证：TU、TUV、AEC Q200(Grase1)
Datasheet for 2920HPS Series A2---2024-4-8
| Electrical Performance | |||||||||
|
Part Number |
Vmax (Vdc) |
Imax (A) |
Current Rating |
Max Time to Trip |
Resistance |
Tripped State Power Dissipation |
|||
|
@25°C (A) |
@25°C (A) |
@25°C (A) |
@25°C (Ohms) |
@25°C (Watts) |
|||||
|
Ihold |
Itrip |
Current | Time |
Rmin |
R1max |
Typ. |
|||
|
2920HPS120-36 |
36 |
40 |
1.20 |
2.75 |
8 |
2.0 |
0.075 |
0.235 |
1.8 |
|
2920HPS150-30 |
30 |
40 |
1.50 |
3.40 |
8 |
5.0 |
0.060 |
0.180 |
1.8 |
|
2920HPS200-24 |
24 |
40 |
2.00 |
4.60 |
8 |
10.0 |
0.035 |
0.125 |
1.8 |
|
2920HPS250-24 |
24 |
40 |
2.50 |
5.75 |
15 |
8.0 |
0.010 |
0.095 |
2.5 |
|
2920HPS300-24 |
24 |
40 |
3.00 |
6.90 |
15 |
8.0 |
0.005 |
0.070 |
2.5 |

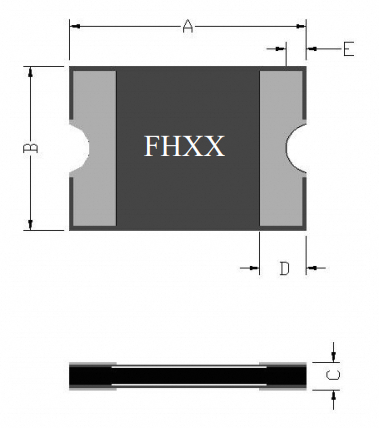

| Dimensions | |||
| PART MARKING (Marking code varies with the Amp and Voltage) |
|||
 |
Dimensions MM (INCH) |
||
| Dimension | Min | Max | |
| A | 6.73 (0.265) |
7.98 (0.314) |
|
| B | 4.80 (0.189) |
5.44 (0.214) |
|
| D | 0.30 (0.012) |
2.50 (0.098) |
|
| E | 0.25 (0.010) |
||
| Dimension C (thickness) and Part Marking | |||
| Part number | Part Marking |
Dimension C Unit: mm(inch)
|
|
| min | max | ||
| 2920HPS120-36 | FH12 | 0.40 (0.016) | 0.85 (0.033) |
| 2920HPS150-30 | FH15 | 0.40 (0.016) | 0.85 (0.033) |
| 2920HPS200-24 | FH20 | 0.80 (0.031) | 1.60 (0.063) |
| 2920HPS250-24 | FH25 | 0.80 (0.031) | 1.60 (0.063) |
| 2920HPS300-24 | FH30 | 0.80 (0.031) | 1.60 (0.063) |
| Pads Layout (Recommended) | ||||
|
|
Recommended Pad Layout Figures | |||
| A | B | c | ||
| NOM | NOM | NOM | ||
| mm: | 4.60 | 2.00 | 5.30 | |
| inch | (0.181) | (0.079) | (0.209) | |
