自恢复保险丝 PTCs 1812HPS Series
表面贴装系列产品
系列：HPS Series
工作温度：-40℃ to + 125℃
工作电压：9Vdc to 36Vdc
保持电流：0.35A to 1.5A
特性：1812车规级封装，适配SMT高速组装，满足汽车与工业严苛应用
认证：TU、TUV、AEC Q200(Grase1)
系列：HPS Series
工作温度：-40℃ to + 125℃
工作电压：9Vdc to 36Vdc
保持电流：0.35A to 1.5A
特性：1812车规级封装，适配SMT高速组装，满足汽车与工业严苛应用
认证：TU、TUV、AEC Q200(Grase1)
Datasheet for 1812HPS Series---2024-4-8
| Electrical Performance | |||||||||
|
Part Number |
Vmax (Vdc) |
Imax (A) |
Current Rating |
Max Time to Trip |
Resistance |
Tripped State Power Dissipation |
|||
|
@25°C (A) |
@25°C (A) |
@25°C (A) |
@25°C (Ohms) |
@25°C (Watts) |
|||||
|
Ihold |
Itrip |
Current | Time |
Rmin |
R1max |
Typ. |
|||
|
1812HPS035-36 |
36 |
40 |
0.35 |
1.75 |
8.0 |
0.10 |
0.30 |
2.60 |
1.2 |
|
1812HPS050-30 |
30 |
40 |
0.50 |
2.50 |
8.0 |
0.10 |
0.18 |
1.60 |
1.2 |
|
1812HPS075-30 |
30 |
40 |
0.75 |
3.75 |
8.0 |
0.10 |
0.09 |
0.85 |
1.5 |
|
1812HPS110-16 |
16 |
40 |
1.10 |
5.50 |
8.0 |
5.00 |
0.05 |
0.45 |
1.5 |
|
1812HPS125-09 |
9 |
40 |
1.25 |
6.25 |
8.0 |
5.00 |
0.03 |
0.30 |
1.5 |
|
1812HPS150-09 |
9 |
40 |
1.50 |
6.00 |
10.0 |
5.00 |
0.022 |
0.20 |
1.5 |
|
1812HPS175-09 |
9 |
40 |
1.75 |
7.00 |
10.0 |
5.00 |
0.018 |
0.17 |
1.5 |

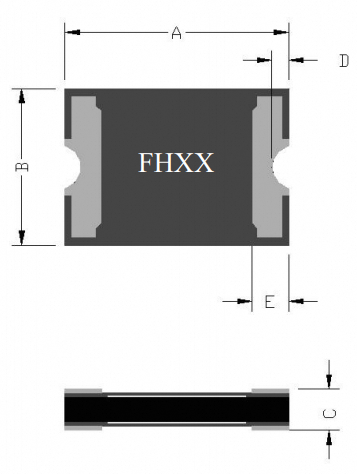

| Dimensions | |||
| PART MARKING (Marking code varies with the Amp and Voltage) |
|||
 |
Dimensions MM (INCH) |
||
| Dimension | Min | Max | |
| A | 4.37 (0.172) |
4.83 (0.190) |
|
| B | 3.07 (0.121) |
3.41 (0.134) |
|
| D | 0.20 (0.008) |
||
| E | 0.25 (0.010) |
0.95 (0.040) |
|
| Dimension C (thickness) and Part Marking | |||
| Part number | Part Marking |
Dimension C Unit: mm(inch)
|
|
| min | max | ||
| 1812HPS035-36 | FH35 | 0.40 (0.016) | 0.85 (0.033) |
| 1812HPS050-30 | FH05 | 0.40 (0.016) | 0.85 (0.033) |
| 1812HPS075-30 | FH75 | 0.40 (0.016) | 0.85 (0.033) |
| 1812HPS110-16 | FH11 | 0.60 (0.024) | 1.20 (0.047) |
| 1812HPS125-09 | FH12 | 0.80 (0.031) | 1.60 (0.063) |
| 1812HPS150-09 | FH15 | 0.80 (0.031) | 1.60 (0.063) |
| 1812HPS175-09 | FH17 | 0.80 (0.031) | 1.60 (0.063) |
| Pads Layout (Recommended) | ||||
|
|
Recommended Pad Layout Figures | |||
| A | B | c | ||
| NOM | NOM | NOM | ||
| mm: | 3.10 | 1.68 | 3.15 | |
| inch | (0.122) | (0.066) | (0.124) | |
