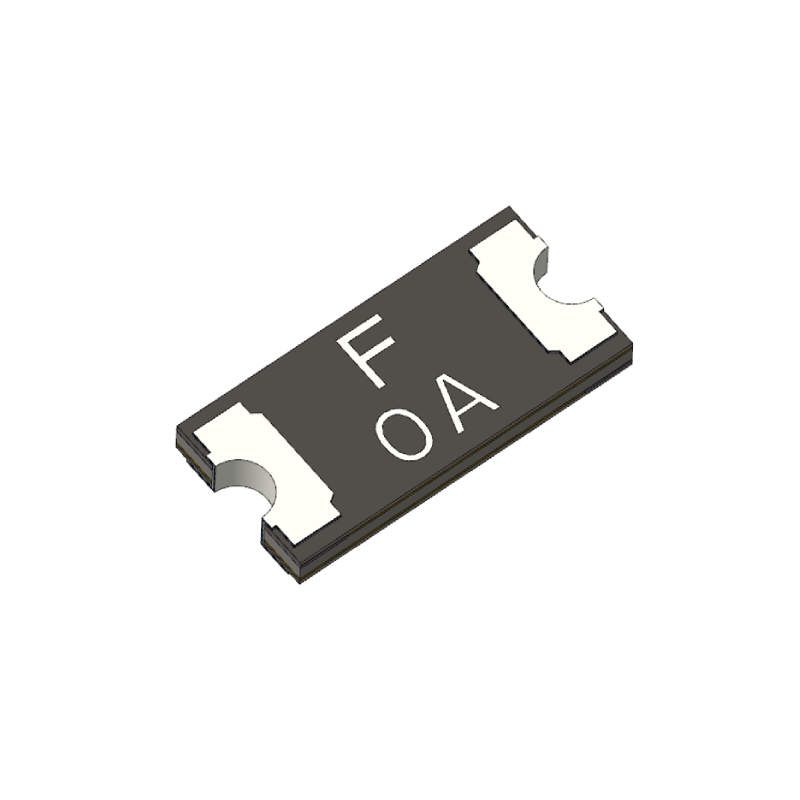

自恢复保险丝 PTCs 1206PS Series
系列：PS Series
工作温度：-40℃ to + 85℃
工作电压：6Vdc to 60Vdc
保持电流：0.05A to 2A
特性：1206封装，快速跳闸，可复位，表贴式，适合SMT自动化组装
认证：TU、TUV
Datasheet for 1206 PS Series FT A2 2026-06-11
| Electrical Performance | |||||||||
|
Part Number |
Vmax (Vdc) |
Imax (A) |
Current Rating |
Max Time to Trip |
Resistance |
Tripped State Power Dissipation |
|||
|
@25°C (A) |
@25°C (A) |
@25°C (A) |
@25°C (Ohms) |
@25°C (Watts) |
|||||
|
Ihold |
Itrip |
Current | Time |
Rmin |
R1max |
TYP |
|||
|
1206PS005-30 |
30 |
40 |
0.05 |
0.15 |
0.25 |
1.50 |
3.60 |
20.00 |
0.6 |
|
1206PS005-60 |
60 |
10 |
0.05 |
0.15 |
0.25 |
1.50 |
3.60 |
20.00 |
0.6 |
|
1206PS010-30 |
30 |
40 |
0.10 |
0.25 |
0.50 |
1.50 |
1.50 |
10.00 |
0.6 |
|
1206PS010-60 |
60 |
10 |
0.10 |
0.25 |
0.50 |
1.50 |
1.50 |
10.00 |
0.6 |
|
1206PS012-16 |
16 |
100 |
0.12 |
0.29 |
0.50 |
1.00 |
1.50 |
6.00 |
0.6 |
|
1206PS012-30 |
30 |
100 |
0.12 |
0.29 |
1.00 |
0.20 |
1.50 |
6.00 |
0.6 |
|
1206PS012-48 |
48 |
10 |
0.12 |
0.29 |
1.00 |
0.30 |
1.50 |
6.00 |
0.6 |
|
1206PS012-60 |
60 |
10 |
0.12 |
0.29 |
0.50 |
1.00 |
1.50 |
15.00 |
0.6 |
|
1206PS016-30 |
30 |
100 |
0.16 |
0.37 |
1.00 |
0.30 |
1.20 |
4.50 |
0.6 |
|
1206PS016-48 |
48 |
10 |
0.16 |
0.37 |
1.00 |
0.30 |
1.20 |
4.50 |
0.6 |
|
1206PS020-24 |
24 |
100 |
0.20 |
0.42 |
8.00 |
0.10 |
0.65 |
2.60 |
0.6 |
|
1206PS020-30 |
30 |
100 |
0.20 |
0.42 |
8.00 |
0.10 |
0.65 |
2.60 |
0.6 |
|
1206PS025-16 |
16 |
100 |
0.25 |
0.50 |
8.00 |
0.08 |
0.55 |
2.30 |
0.6 |
|
1206PS025-24 |
24 |
100 |
0.25 |
0.55 |
8.00 |
0.08 |
0.55 |
2.30 |
0.6 |
|
1206PS025-30 |
30 |
100 |
0.25 |
0.55 |
8.00 |
0.08 |
0.55 |
2.30 |
0.6 |
|
1206PS035-06 |
6 |
100 |
0.35 |
0.75 |
8.00 |
0.10 |
0.30 |
1.20 |
0.6 |
|
1206PS035-16 |
16 |
100 |
0.35 |
0.75 |
8.00 |
0.10 |
0.30 |
1.20 |
0.6 |
|
1206PS035-30 |
30 |
100 |
0.35 |
0.75 |
8.00 |
0.10 |
0.30 |
1.20 |
0.6 |
|
1206PS050-06 |
6 |
100 |
0.50 |
1.00 |
8.00 |
0.10 |
0.15 |
0.70 |
0.6 |
|
1206PS050-16 |
16 |
100 |
0.50 |
1.00 |
8.00 |
0.10 |
0.15 |
0.75 |
0.6 |
|
1206PS050-24 |
24 |
100 |
0.50 |
1.00 |
8.00 |
0.10 |
0.15 |
0.75 |
0.6 |
|
1206PS075-08 |
8 |
100 |
0.75 |
1.50 |
8.00 |
0.20 |
0.09 |
0.29 |
0.6 |
|
1206PS075-13.2 |
13.2 |
100 |
0.75 |
1.50 |
8.00 |
0.20 |
0.09 |
0.35 |
0.6 |
|
1206PS075-16 |
16 |
100 |
0.75 |
1.50 |
8.00 |
0.20 |
0.09 |
0.35 |
0.6 |
|
1206PS075-24 |
24 |
100 |
0.75 |
1.50 |
8.00 |
0.20 |
0.09 |
0.35 |
0.6 |
|
1206PS110-08 |
8 |
100 |
1.10 |
2.20 |
8.00 |
0.10 |
0.06 |
0.21 |
0.8 |
|
1206PS110-16 |
16 |
100 |
1.10 |
2.20 |
8.00 |
0.10 |
0.06 |
0.21 |
0.8 |
|
1206PS150-08 |
8 |
100 |
1.50 |
3.00 |
8.00 |
0.30 |
0.025 |
0.11 |
0.8 |
|
1206PS150-13.2 |
13.2 |
100 |
1.50 |
3.00 |
8.00 |
0.30 |
0.04 |
0.12 |
0.8 |
|
1206PS175-06 |
6 |
100 |
1.75 |
3.50 |
8.00 |
0.50 |
0.02 |
0.09 |
0.8 |
|
1206PS200-06 |
6 |
100 |
2.00 |
4.00 |
8.00 |
1.50 |
0.018 |
0.080 |
0.8 |

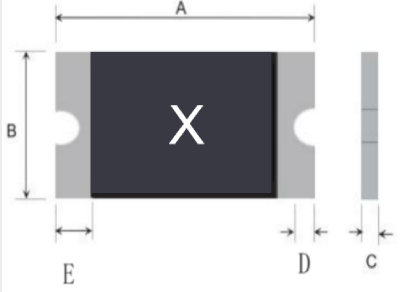

| Dimensions | |||
| PART MARKING (Marking code varies with the Amp and Voltage) |
|||
 |
Dimensions MM (INCH) |
||
| Dimension | Min | Max | |
| A | 3.00 (0.118) |
3.40 (0.134) |
|
| B | 1.50 (0.060) |
1.80 (0.071) |
|
| D | 0.05 (0.002) |
||
| E | 0.25 (0.010) |
0.75 (0.030) |
|
| Pads Layout (Recommended) | ||||
|
|
Recommended Pad Layout Figures | |||
| A | B | c | ||
| NOM | NOM | NOM | ||
| mm: | 2.00 | 1.00 | 1.60 | |
| inch | (0.079) | (0.039) | (0.063) | |
