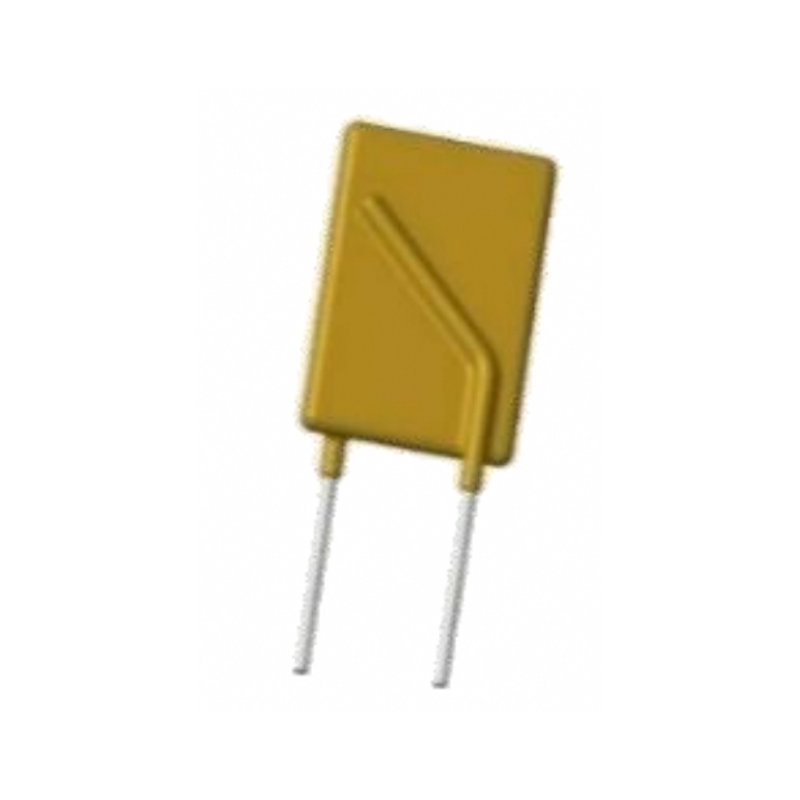

自恢复保险丝 PTCs HLK
系列：HLK Series
工作温度：-40℃ to +125℃
工作电压：32dcV
保持电流：0.5A to 10A
High Temperature Radial Leaded Devices Datasheet for HLK Series
| Electrical Performance | |||||||||
|
Part Number |
Vmax(Vdc) |
Imax (A) |
Current Rating |
Max Time to Trip |
Resistance |
Tripped State Power Dissipation |
|||
|
@25°C (A) |
@25°C (A) |
（Sec） |
@25°C (Ohms) |
@25°C (Watts) |
|||||
|
Ihold |
Itrip |
Current | Time |
Rmin |
R1max |
TYP. |
|||
|
HLK050 |
32 |
100 |
0.50 |
1.00 |
2.50 |
3.00 |
0.3500 |
1.1000 |
0.9 |
|
HLK070 |
32 |
100 |
0.70 |
1.40 |
3.50 |
3.20 |
0.2300 |
0.8000 |
1.4 |
|
HLK100 |
32 |
100 |
1.00 |
1.90 |
5.20 |
6.20 |
0.1500 |
0.4300 |
1.4 |
|
HLK200 |
32 |
100 |
2.00 |
3.80 |
10.0 |
5.50 |
0.0650 |
0.2500 |
2.2 |
| HLK300 | 32 | 100 | 3.00 | 6.00 | 15.0 | 5.00 | 0.0350 | 0.1100 | 3.2 |
| HLK500 | 32 | 100 | 5.00 | 10.0 | 25.0 | 9.00 | 0.0150 | 0.0400 | 5.3 |
| HLK750 | 32 | 100 | 7.50 | 15.0 | 37.5 | 13.0 | 0.0074 | 0.0230 | 6.5 |
| HLK1000 | 32 | 100 | 10.0 | 20.0 | 50.0 | 15.0 | 0.0060 | 0.0160 | 7.0 |

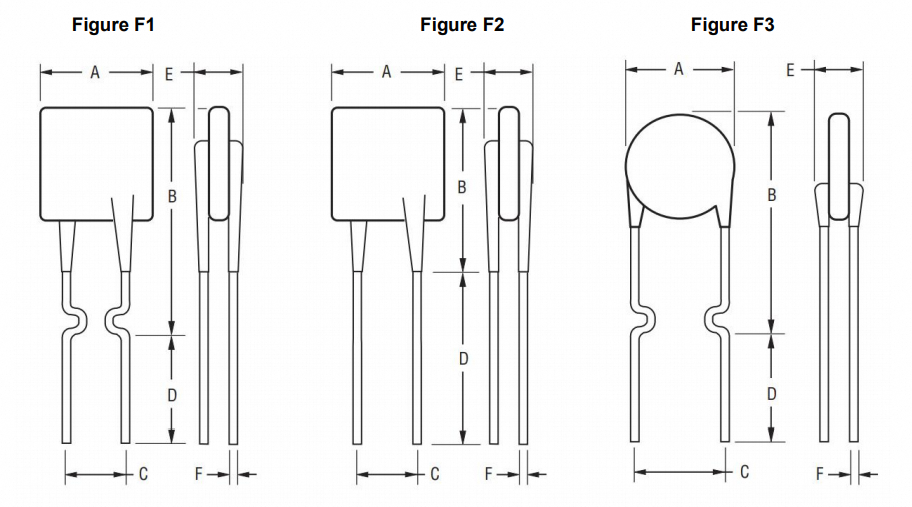

| Dimensions MM (INCH) | |||||||||
|
Part Number |
A |
B |
C |
D |
E |
F |
Physical Characteristics |
||
|
Max |
Max |
Min |
Max |
Min |
Max |
Typ. |
Figure |
Material |
|
|
HLK050 |
7.40 |
12.70 |
4.30 |
5.80 |
7.60 |
3.00 |
- |
F3 |
Sn/CuFe |
|
(0.290) |
(0.500) |
(0.170) |
(0.230) |
(0.300) |
(0.130) |
- | |||
|
HLK070 |
6.86 |
10.80 |
4.30 |
5.80 |
7.60 |
3.00 |
- |
F1 |
Sn/CuFe |
|
(0.270) |
(0.430) |
(0.170) |
(0.230) |
(0.300) |
(0.120) |
- | |||
|
HLK100 |
9.70 |
13.60 |
4.30 |
5.80 |
7.60 |
3.00 |
- |
F3 |
Sn/CuFe |
|
(0.380) |
(0.540) |
(0.170) |
(0.230) |
(0.300) |
(0.120) |
- | |||
|
HLK200 |
9.50 |
13.50 |
4.30 |
5.80 |
7.60 |
3.00 |
- |
F2 |
Sn/CuFe |
|
(0.370) |
(0.530) |
(0.170) |
(0.230) |
(0.300) |
(0.120) |
- | |||
| HLK300 | 10.2 | 15.5 | 4.30 | 5.80 | 7.60 | 3.80 | - | F2 | Sn/CuFe |
| (0.400) | (0.610) | (0.170) | (0.230) | (0.300) | (0.150) | - | |||
| HLK500 | 14.0 | 24.1 | 4.30 | 5.80 | 7.60 | 3.80 | - | F2 | Sn/CuFe |
| (0.550) | (0.950) | (0.170) | (0.230) | (0.300) | (0.150) | - | |||
| HLK750 | 21.1 | 24.9 | 9.40 | 10.9 | 7.60 | 3.80 | - | F2 | Sn/CuFe |
| (0.830) | (0.980) | (0.370) | (0.430) | (0.300) | (0.150) | - | |||
| HLK1000 | 23.5 | 27.9 | 9.40 | 10.9 | 7.60 | 4.00 | - | F2 | Sn/CuFe |
| (0.930) | (1.100) | (0.370) | (0.430) | (0.300) | (0.160) | - | |||
